Broadcast Tools SS16.16 Balanced Analog Stereo Audio Automation Switcher Router

Tested/Guaranteed • Used, Very Good Condition • With All Connector Blocks & 115/230V Power Supply • Silence Sensor • Triggers • RS-232 Control • List $2,699

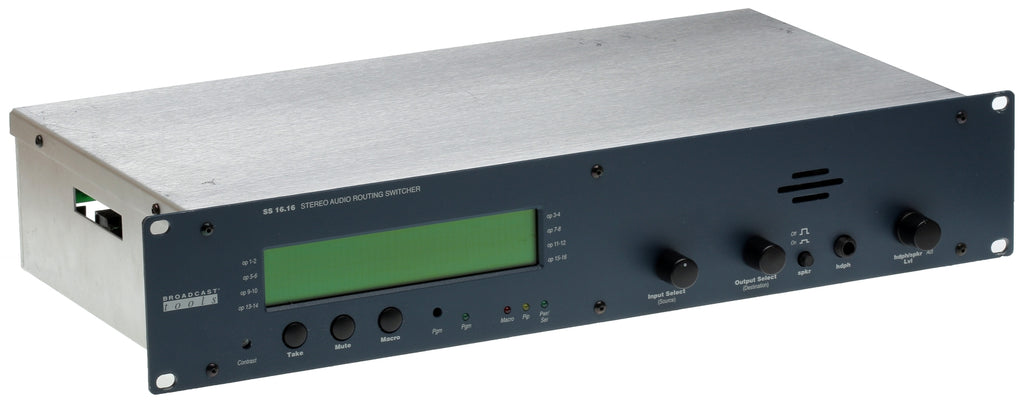

Photos show the actual item for sale

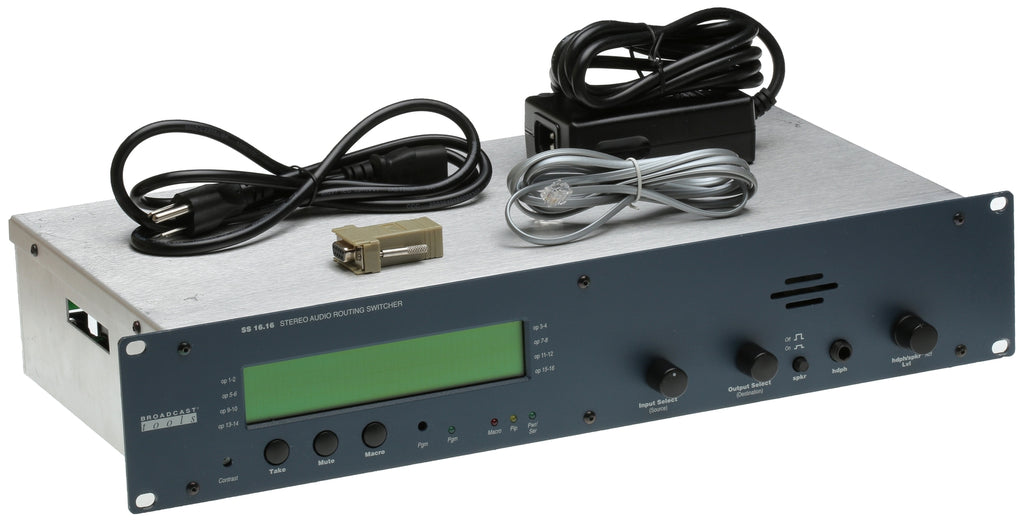

Unit is lightly used, in good cosmetic condition and fully working. All connector blocks are included. A new 115V/230V power supply is also included.

Description

The Broadcast Tools SS 16.16 provides audio routing of 16 stereo inputs to 16 stereo outputs. This type of switching allows any one stereo input to be assigned to any or all stereo outputs. The SS 16.16 may be controlled via front panel encoder controls and/or multi-drop RS-232 serial port. A 40 x 4 LCD back lit display provides for input descriptions and macro setup. A16 x 16 GPIO port is provided when used with automation systems. Installation is simplified with removable screw terminals (Euro).

More information may be obtained from the User Manual at
https://www.prostudioconnection.net/2401/Manual_SS16x16.pdf

List Price $2,699

Features/Benefits

• Stereo routing of any one input to any or all outputs.

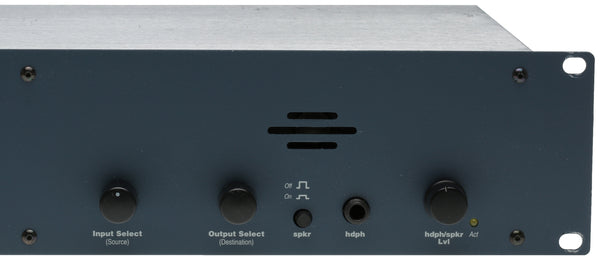

• Headphone amplifier with front panel 1/4" jack and level control.
• Front panel monitor speaker with mute switch and level control.

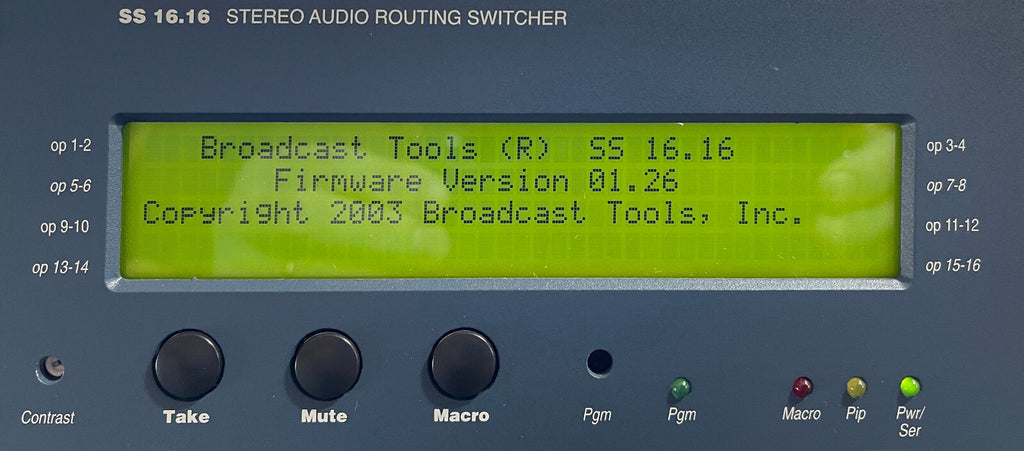

• 40 x 4 LED back lit LCD display with user programmable nine character input descriptions.
• Internal audio activity/silence sensor monitors output channel sixteen. A front panel “ACT" indicator and rear panel open collector are provided. Trigger set at -30dbu.
• Two front panel encoder controls are provided. One each for input / output channel selection.
• Power-up selection of channel configuration, mute or last source selected.
• Sixteen user configured macros.

• Most configuration options may be set via the easy access rear panel dipswitches.
• 16 input GPI port (PIP) with LED indicator.
• 16 open collector channel status outputs or programmable via burst commands.
• Multi-turn input level controls and single turn output level controls.
• Electronically balanced stereo inputs and outputs.

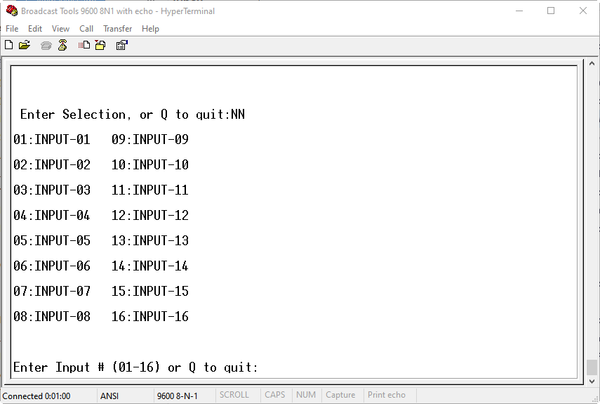

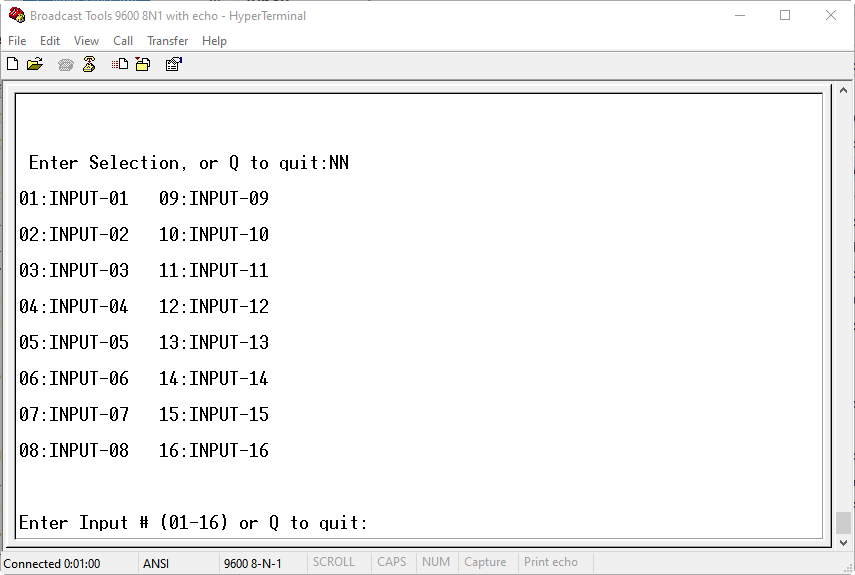

• Multi-drop RS-232 serial port with data activity LED.
• Multiple unit inputs may be cascaded to expand outputs.

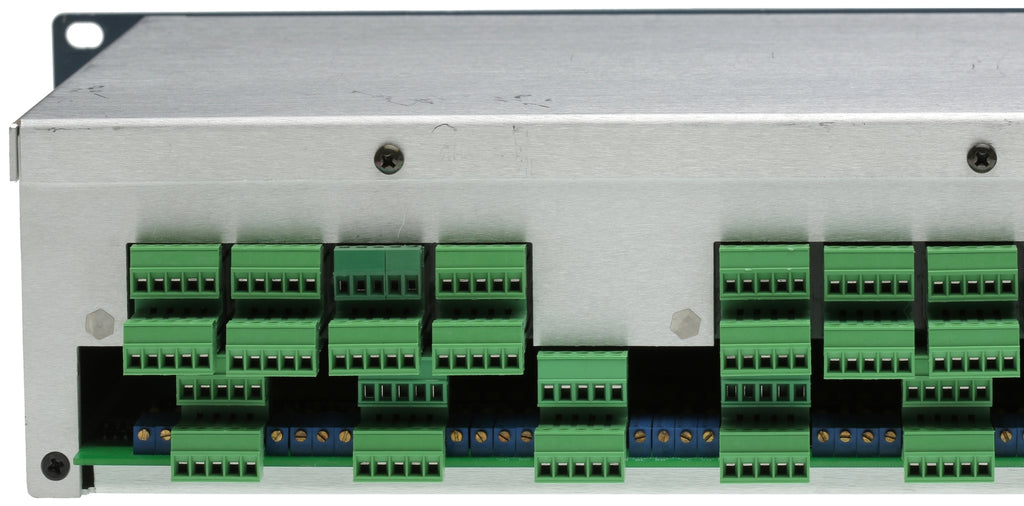

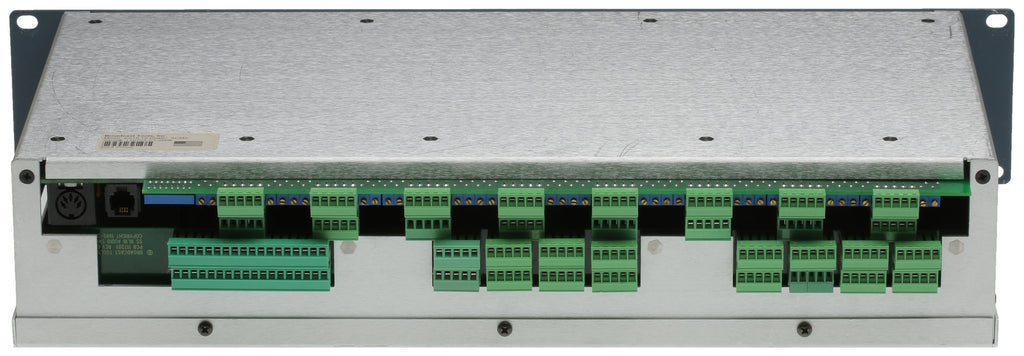

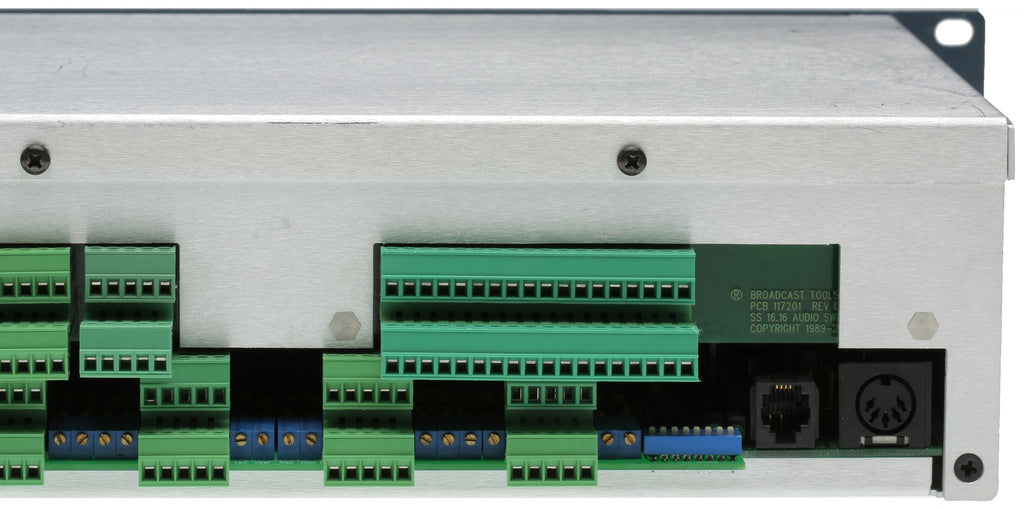

• Depluggable screw (EURO) terminals for ALL connections.
• Logic functions via microprocessor with non-volatile memory.
• External tri-voltage universal switching power supply.
• 2-RU chassis.

Applications

• Stereo audio matrix switching
